Grindex Dewatering Pump: Magnum

Electrical submersible 3~ drainage pump

The biggest pump in the drainage range.

Launched in the year 2000, the Magnum pump has proven to be the ideal pump for heavy duty drainage applications in all kinds of segments. Be it Construction, Mining or Industrial applications, the robust and reliable design combined with the ease-of-maintenance make it the pump of choice for hundreds of customers around the world.

Available in both 50hz and 60hz models.

Gindex-Magnum
Technical DataLNH
Discharge connection10″8″6″
Rated output57 kW57 kW57 kW
Max power consumption62 kW62 kW64 kW
Rated current at 400 V107 A107 A98 A
Rated current at 500 V85 A85 A79 A
Shaft speed1475 RPM1475 RPM2950 RPM
Strainer holes∅ 12 mm∅ 12 mm∅ 12 mm
Weight540 kg540 kg540 kg
Height1475 mm1475 mm1475 mm
Width∅ 750 mm∅ 750 mm∅ 750 mm

Upper Mechanical Seal:
Tungsten carbide - Tungsten carbide
Lower Mechanical Seal:
Tungsten carbide
Outer Casing:
Stainless steel
Strator Housing:
Aluminium
Motor Shaft:
Stainless steel
Impeller:
Hard-IronTM
Lower Diffuser:
Polyurethane
Float Switch:
Together with external starter
Zinc Anodes:
On request
Other Castings:
Aluminium
Pump Raft:
On request
Screws & Nuts:
Stainless steel
Diffuser Ring:
Polyurethane
O-Rings:
Nitrile rubber
Max. Liquid Density:
1100 kg/m3
Max. Liquid Temperature:
40°C
pH of Liquid:
5-8
Max Submersible Depth:
20m
Tandem Connection:
On request

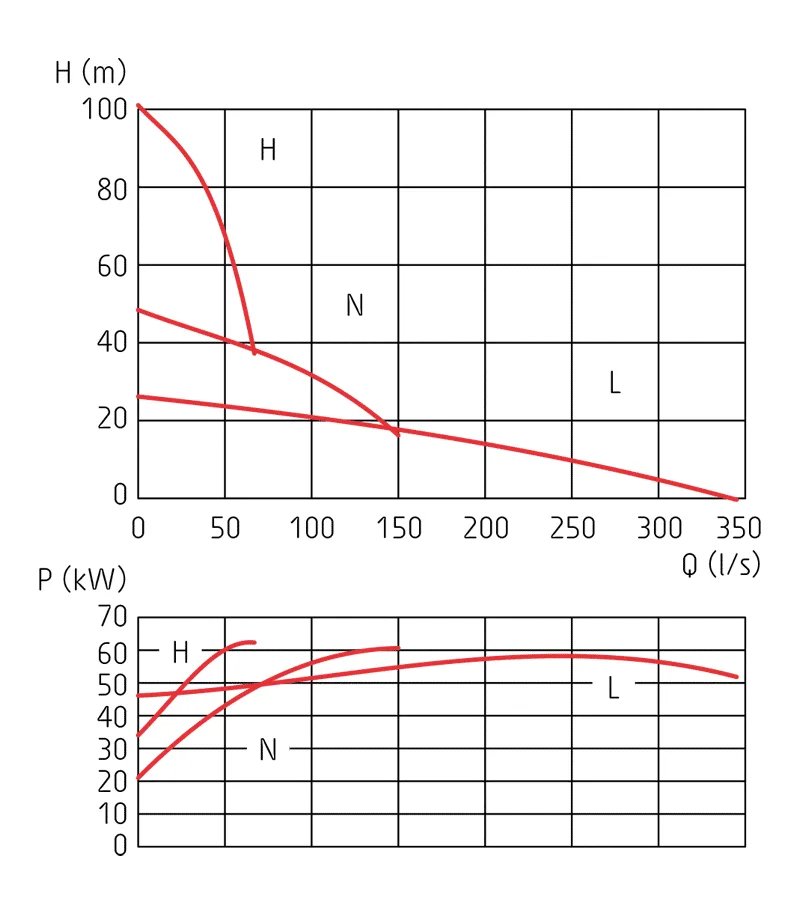

Download: Curve
gx_brochure_drainagesludge_en_50hz-THUMBNAIL
Product Brochure
IOM Manual
