With its impressive allowed pH range, from 2 up to 10, it is hard to find an application that can’t be handled by the Inox pumps.
The modular design drives service cost down and at the same time offers the flexibility to change from a Normal pressure pump (N), to a High pressure pump (H). All materials in contact with the liquid are made out of AISI 316 stainless steel or better.
Available in both 50hz and 60hz models.

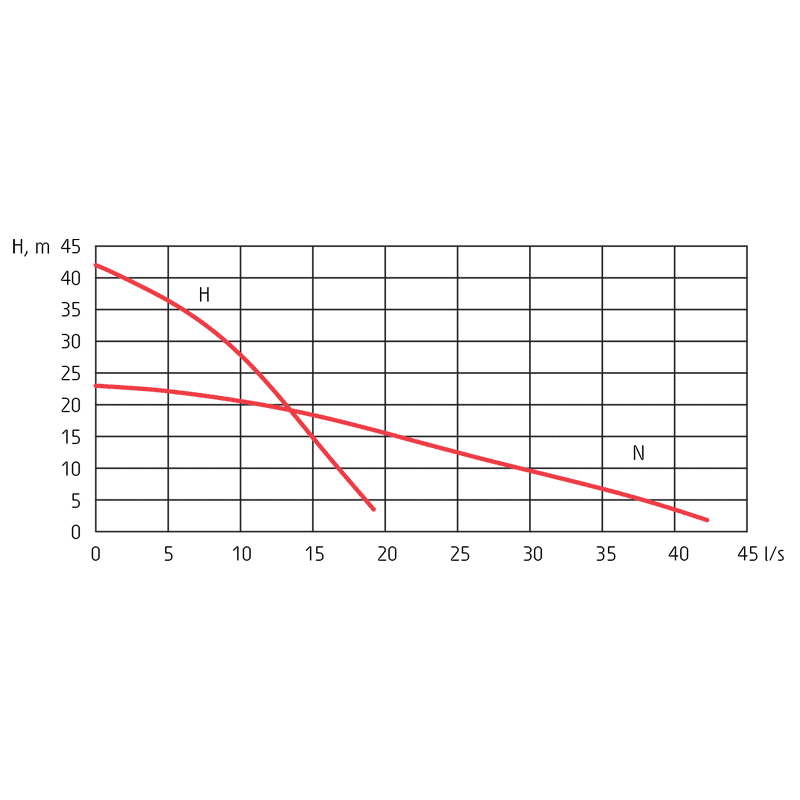

| Technical Data | N | H |
|---|---|---|
| Discharge connection | 4″ | 3″ |
| Rated output | 6.3 kW | 6.3 kW |
| Max power consumption | 7.3 kW | 7.3 kW |
| Rated current at 400 V | 12 A | 12 A |
| Rated current at 500 V | 9.4 A | 9.4 A |
| Shaft speed | 2840 RPM | 2840 RPM |
