Grindex Slurry Pump: Bravo 600
Discharge connection 4″ Rated output 22 kW Max power consumption 25 kW Shaft speed 1460 RPM Rated current at 400 V 41 A Rated current at 500 V 33 A Throughlet 40 mm
Grindex Slurry Pump: Bravo 700
Discharge connection 6″ Rated output 37 kW Max power consumption 40 kW Shaft speed 1475 RPM Rated current at 400 V 66 A Rated current at 500 V 54 A Throughlet 36 mm
Grindex Slurry Pump: Bravo 800
Discharge connection 6″ Rated output 45 kW Max power consumption 49 kW Shaft speed 1475 RPM Rated current at 400 V 82 A Rated current at 500 V 63 A Throughlet 36 mm

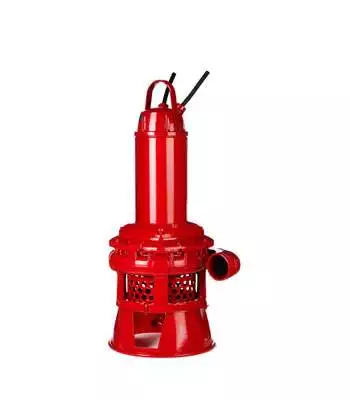

Grindex Slurry Pump: Bravo 900
Discharge connection 6″ Rated output 70 kW Max power consumption 75 kW Shaft speed 1475 RPM Rated current at 400 V 132 A Rated current at 500 V 102 A Throughlet 36 mm

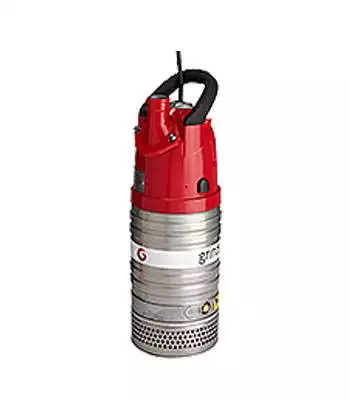

Grindex Dewatering Pump: Minex
Technical Data Lite 1~ 3~ Discharge connection 2″ 2″ 2″ Rated output 0.85 kW 1.4 kW 1.2 kW Max power consumption 1.1 kW 1.7 kW 1.6 kW Rated current at 230 V 5.1 A 7.8 A 4.7 A Rated current at 400 V – – 2.6 A Shaft speed 2755 RPM 2780 RPM 2470 RPM […]
Grindex Dewatering Pump: Minette

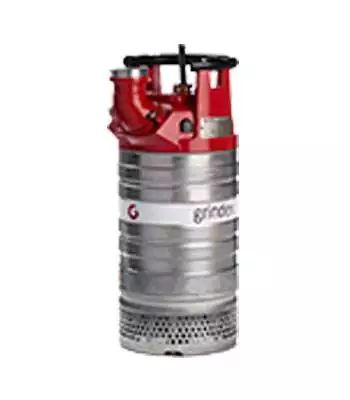

Grindex Dewatering Pump: Minor
Technical Data N H Discharge connection 4″ 3″ Rated output 3.7 kW 3.7 kW Max power consumption 4.4 kW 4.4 kW Rated current at 400 V 7.3 A 7.3 A Rated current at 500 V 5.4 A 5.4 A Shaft speed 2855 RPM 2855 RPM Strainer holes ∅ 10 mm ∅ 10 mm Weight 50 […]
Grindex Dewatering Pump: Major
Technical Data N H Discharge connection 4″ 3″ Rated output 5.6 kW 5.6 kW Max power consumption 6.6 kW 6.6 kW Rated current at 400 V 11 A 11 A Rated current at 500 V 8.7 A 8.7 A Shaft speed 2895 RPM 2895 RPM Strainer holes ∅ 10 mm ∅ 10 mm Weight 50 […]
Grindex Dewatering Pump: Master
Technical Data N H SH Discharge connection 6″ 4″ 3″ Rated output 10 kW 10 kW 10 kW Max power consumption 11.7 kW 11.7 kW 11.7 kW Rated current at 400 V 21 A 21 A 19 A Rated current at 500 V 15 A 15 A 15 A Shaft speed 2855 RPM 2855 RPM […]

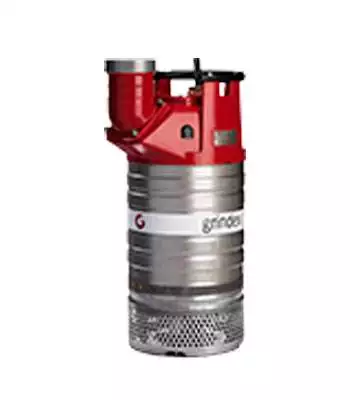

Grindex Dewatering Pump: Matador
Technical Data N H Discharge connection 6” 4” Rated output 18 kW 18 kW Max power consumption 20 kW 20 kW Rated current at 400 V 33 A 33 A Rated current at 500 V 26 A 26 A Shaft speed 2905 RPM 2905 RPM Strainer holes ∅ 12 mm ∅ 12 mm Weight 133 […]
