Grindex Dewatering Pump: Primo D8
Technical Data Discharge connection 2″ Rated Power P2 0,75 kW Rated current at 230 V 5,2 A Solids passage 7,5 mm Weight 13 kg Height 358 mm Diameter 183 mm Shaft Speed 2800 RPM Classification Single phase Electrical submersible pumps Protection class: IP 68 Limitations Max. submersion depth: 5 m (16,5 ft) Max. liquid temperature: […]
Grindex Sludge Pump: Primo S8
Technical Data Discharge connection 2″ Rated Power P2 0,75 kW Rated current at 230 V 5,2 A Solids passage 25 mm Weight 13 kg Height 416 mm Diameter 250 mm Shaft Speed 2800 RPM Classification Single phase Electrical submersible pumps Protection class: IP 68 Limitations Max. submersion depth: 5 m (16,5 ft) Max. liquid temperature: […]
Grindex Sludge Pump: Salvador
Technical Data 1~ 3~ Discharge connection 3″ 3″ Rated output 1.5 kW 2.2 kW Max power consumption 1.9 kW 2.7 kW Rated current at 400 V 8.4 A 8.1 A Rated current at 500 V – 4.5 A Shaft speed 2830 RPM 2800 RPM Strainer holes ∅ 50 mm ∅ 50 mm Weight 33 kg […]
Grindex Sludge Pump: Senior
Technical Data N Discharge connection 4″ Rated output 3.2 kW Max power consumption 4.2 kW Rated current at 400 V 7.6 A Rated current at 500 V 6.0 A Shaft speed 1400 RPM Strainer holes ∅ 80 mm Weight 56 kg Height 867 mm Width 480 mm Diameter ∅ 320 mm Other voltages on request
Grindex Sludge Pump: Sandy
Technical Data N H Discharge connection 3″ 3″ Rated output 5.6 kW 5.6 kW Max power consumption 6.6 kW 6.6 kW Rated current at 400 V 11 A 11 A Rated current at 500 V 8.7 A 8.7 A Shaft speed 2895 RPM 2895 RPM Strainer holes ∅ 50 mm ∅ 32 mm Weight 56 […]
Grindex Sludge Pump: Solid
Technical Data Solid Discharge connection 2″ Rated output 0.9 kW Max power consumption 1.2 kW Rated current at 230 V 5.2 A Shaft speed 2800 RPM Strainer holes ∅ 38 mm Weight 17 kg Height 510 mm Width 280 mm Other voltages on request

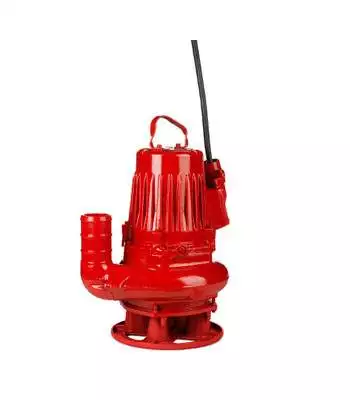

Grindex Slurry Pump: Bravo 200
Discharge connection 4″ Rated output 4.7 kW Max power consumption 5.7 kW Shaft speed 1445 RPM Rated current at 400 V 9.6 A Rated current at 500 V 7.7 A Throughlet 50 mm
Grindex Slurry Pump: Bravo 300
Discharge connection 6″ Rated output 5.9 kW Max power consumption 7.1 kW Shaft speed 1450 RPM Rated current at 400 V 12 A Rated current at 500 V 9.5 A Throughlet 50 mm

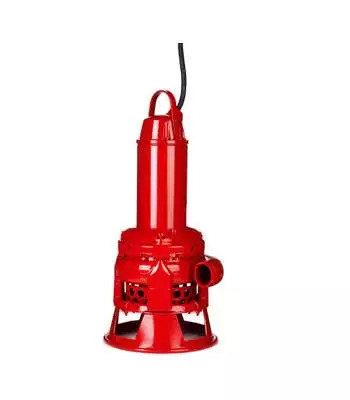

Grindex Slurry Pump: Bravo 400
Discharge connection 4″ Rated output 13.5 kW Max power consumption 16 kW Shaft speed 1455 RPM Rated current at 400 V 28 A Rated current at 500 V 21 A Throughlet 30 mm
Grindex Slurry Pump: Bravo 500
Discharge connection 4″ Rated output 18.5 kW Max power consumption 21 kW Shaft speed 1460 RPM Rated current at 400 V 36 A Rated current at 500 V 29 A Throughlet 40 mm
